ZYCOO

M100 Dispatch Microphone Console

Versatile SIP console supporting serverless mode

Download Datasheet
The M100 Dispatch Microphone Console is a versatile and high-performance SIP-enabled device for seamless communication. It features 30 programmable fast keys that can be used for paging, intercom, music playback, outbound phone calls, and emergency alarm activation. It serves as a standalone serverless console for individual and group paging, internal calls, and more.

Server-less Paging

Two-way Communication

Music Playback

Pre-recorded Announcements

Standard SIP Integration

PoE Support

Peripheral Devices

Phone Calls

Versatile Functionality of M100

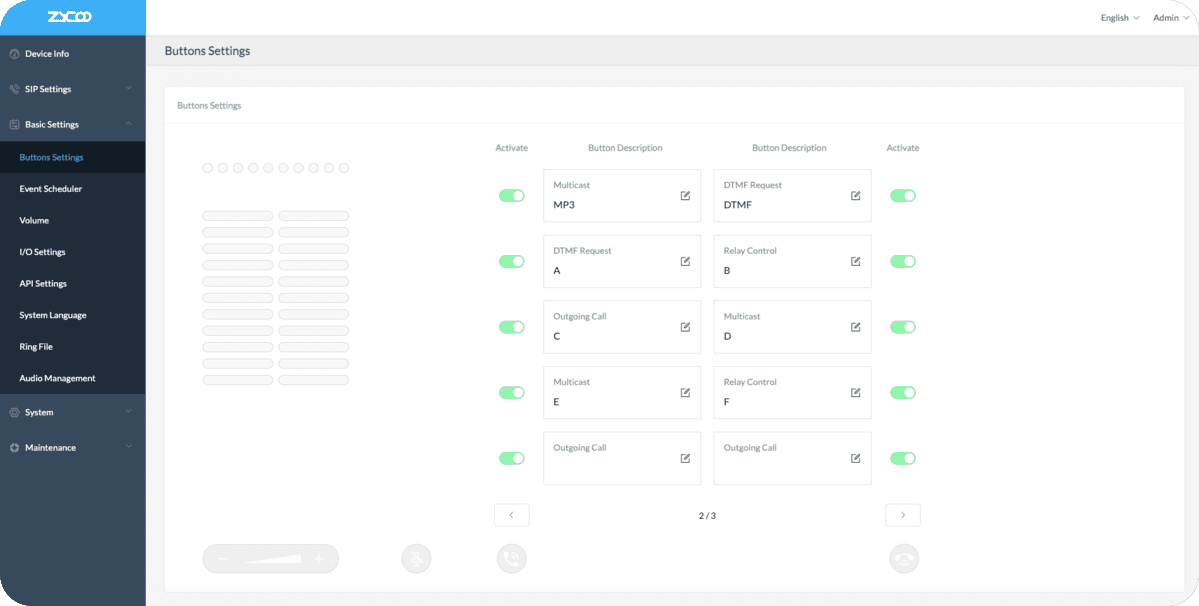

30 Programmable Fast Keys
Set different actions for fast keys such as Outgoing Call, HTTP Request, DTMF Request, Relay Control, and Multicast to meet various needs.

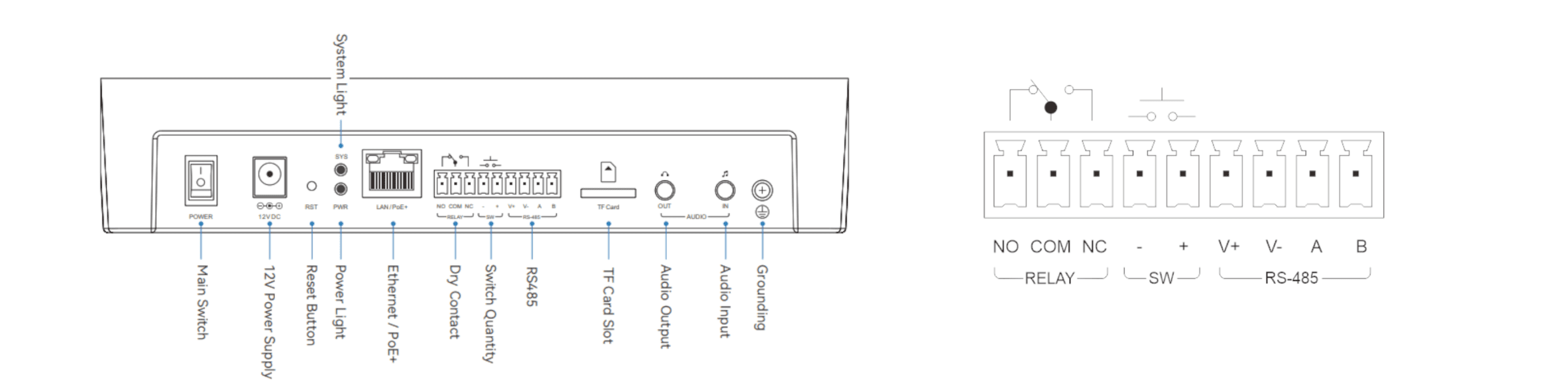

Back Panel of M100
Flexible connection to external devices.
Specifications
Item Specs M100
Mechanical Properties Weight 1.2kg
Dimension 210*190*46mm
Operating Temperature -20°C - 50°C ( -4°F - 122°F )
Audio Audio Codecs G.722, G.711 A-law, G.711 U-law, Opus
Audio Streaming MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or stereo
Power Supply External power supply DC 12V 1A
PoE IEEE 802.3af/at
Interfaces Audio Input 3.5mm audio jack
Audio Output 3.5mm audio jack
Network Interface 10/100Mbps
LCD Display Size 4.3 inches
Resolution 480p*272p
Color 24-bit 8R8G
Approvals EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN IEC 62368-1:2020+A11:2020 FCC Part 15 Subpart B Class A
