Network Power Amplifier

A Dual-Channel Commercial Power Amplifier with SIP and Dante Support
voip-gateways

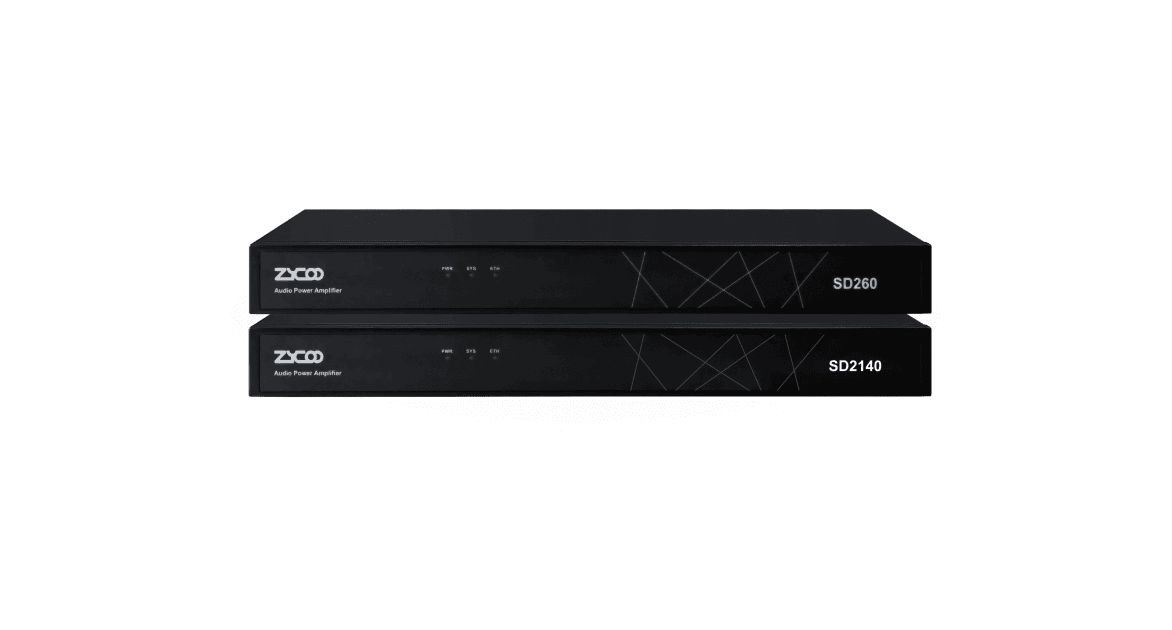

The ZYCOO SD Series Network Power Amplifiers — comprising the SD260 and SD2140 — are purpose-built for commercial audio applications, leveraging advanced Class-D amplification technology to deliver crystal-clear audio and outstanding reliability.

Both models support constant voltage and constant impedance speaker configurations. The SD260 delivers 2 × 60W or 1 × 120W (bridged), while the SD2140 offers higher output at 2 × 140W or 1 × 280W (bridged). Each model features a versatile range of inputs, including balanced/unbalanced line, Bluetooth, and network sources. With compatibility for SIP, Dante, and ONVIF protocols — no additional modules required — they offer a comprehensive, feature-rich solution.

Additionally, the amplifiers are equipped with a real-time adjustable mixer, an equalizer, and support scheduled playback via USB storage devices, making them ideal for scalable, intelligent audio deployments.

SE/BTL Audio Output

Line/BT/Network Audio Input

Customizable Equalizer

Real-time Adjustable Mixer

Standard SIP Supported

ONVIF Supported

Dante Supported

Event Scheduler

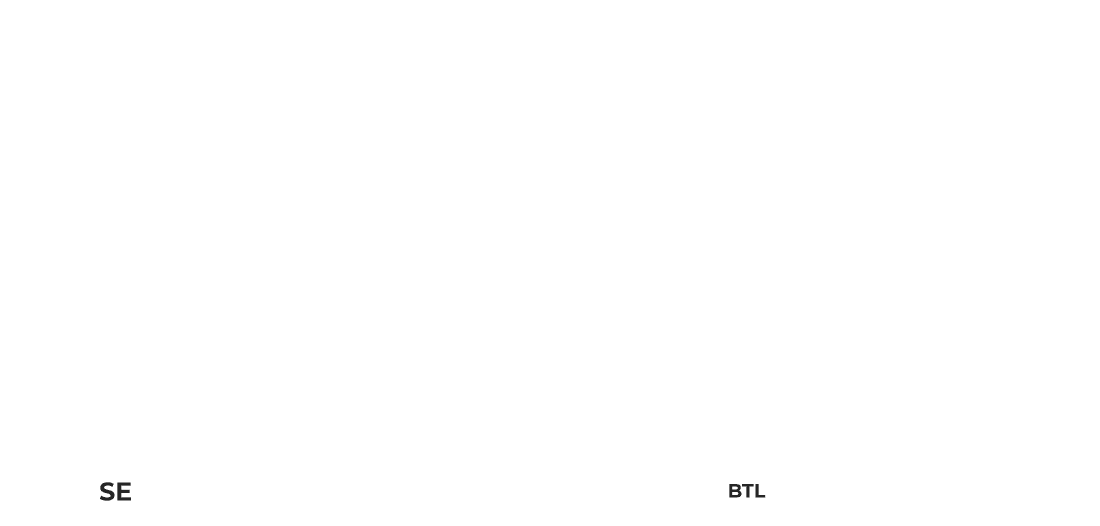

SE/BTL Audio Output

The SD260 delivers high-quality audio output through a 4-pin Phoenix connector, offering 2 × 60W in SE or 1 × 120W in BTL mode, while the SD2140 provides higher power with 2 × 140W SE or 1 × 280W BTL output. Both models support constant voltage and constant impedance output. With a THD+N as low as 0.05% and an SNR of 85dB, they ensure exceptional audio clarity and fidelity, making them ideal for various commercial and public address applications.
SE/BTL Audio Output

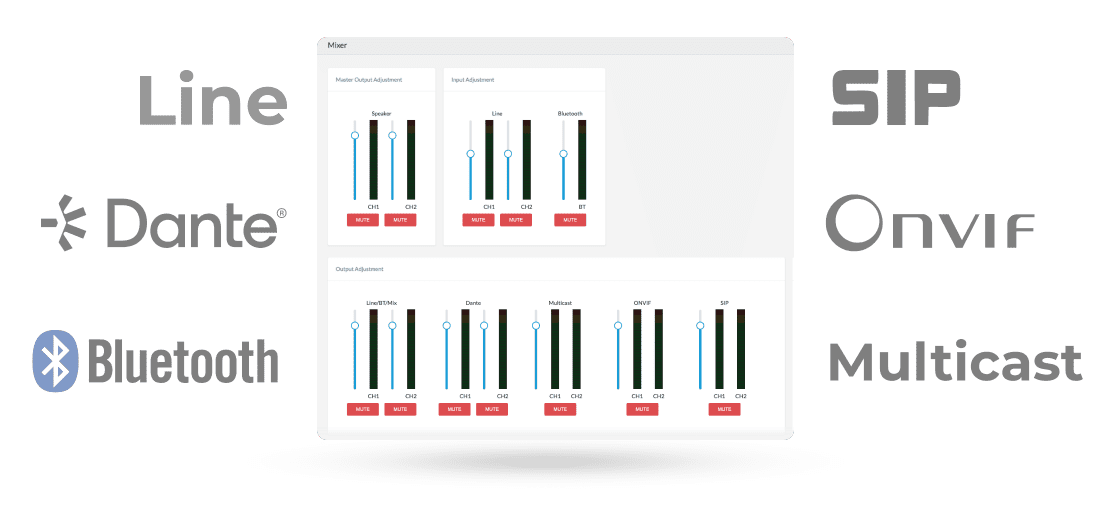

Real-Time Adjustable Mixer

The mixer feature of the SD260 and SD2140 supports real-time adjustment of input source volume, output source volume, and master output volume. This allows for quick volume control on the WebGUI for various applications, including Line, BT, SIP, ONVIF, Dante, IP Audio Center, Event Scheduler, etc.
Real-Time Adjustable Mixer

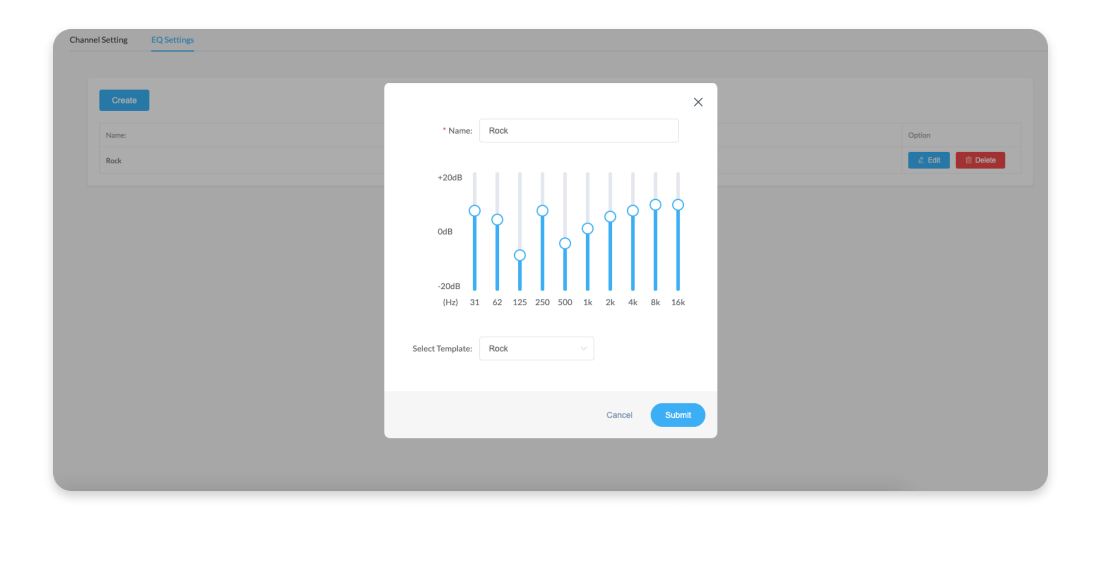

10-Band Frequency Equalizer

The EQ feature of the SD260 and SD2140 supports a 10-band frequency adjustment, allowing precise optimization of different frequency ranges for audio sources such as multicast, event scheduler playback, and local line inputs. Users can create and manage multiple equalizer profiles, easily applying them to various audio sources and channels.
10-Band Frequency Equalizer

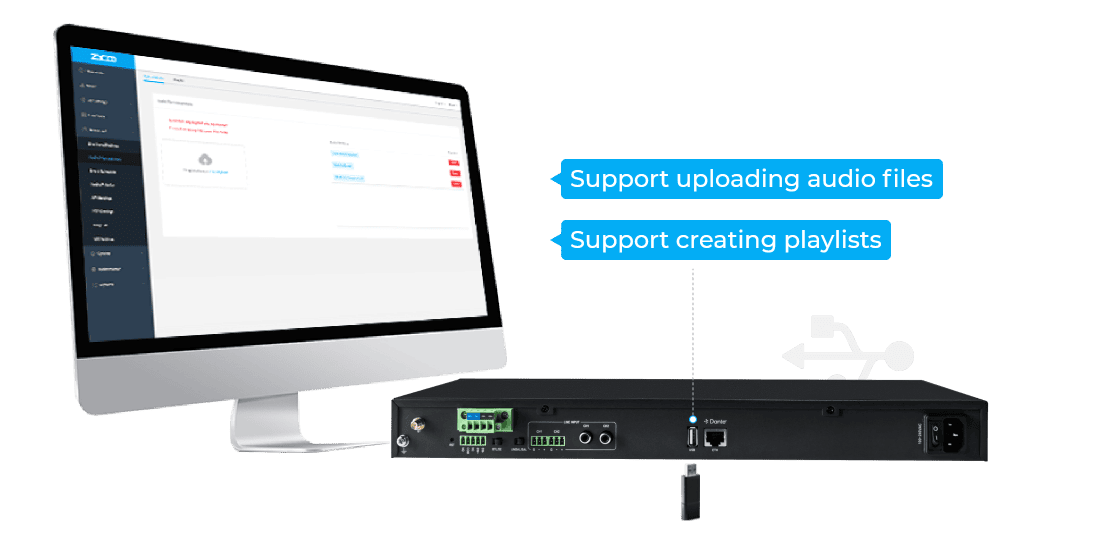

USB Audio Storage and Scheduled Playback

Both SD260 and SD2140 support connecting USB external storage devices to store audio files, allowing uploading local audio files and creating playlists. Additionally, they support using the Event Scheduler feature to set offline timed playback tasks.
USB Audio Storage and Scheduled Playback

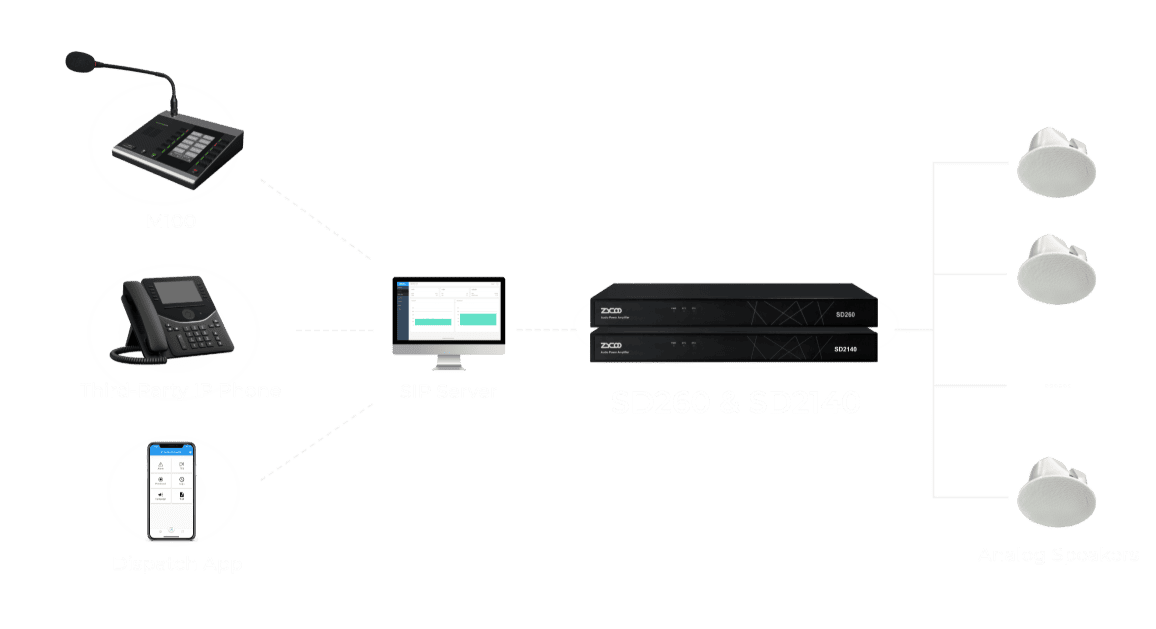

Standard SIP Supported

Both SD260 and SD2140 support the standard SIP protocol and can integrate seamlessly with ZYCOO IP Audio Center or third-party SIP servers, such as IP-PBX systems. Unlike traditional power amplifiers, which rely on dedicated hardware or complex setups for paging, they enable SIP paging directly to connected analog speakers via networks, simplifying deployment and management.
Standard SIP Supported

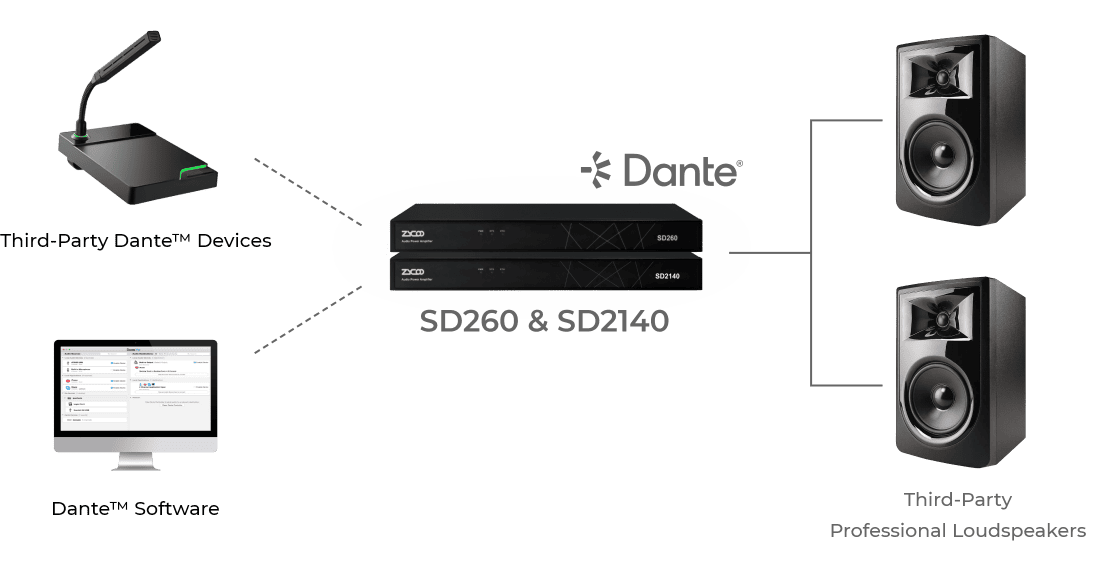

Dante™ Compatibility

Dante™ delivers uncompressed, multi-channel, low-latency digital audio over a standard Ethernet network. The SD260 and the SD2140 come with Dante™ functionality. Once enabled, you can seamlessly join the Dante™ audio network and use Dante™ to play audio with low latency to the audience.
Dante™ Compatibility
Specifications
SD260 SD2140
Amplifier Topology Class-D
Frequency Response 20Hz～20KHz ± 0.25dB
THD+N(@ 1 kHz) 0.05%
SNR 85dB
Audio Output SE:
@ 100V 2 x 60W
@ 25V 2 x 60W
@ 4Ω(Min) 2 x 60W
BTL:
@ 100VBridge 1 x 120W
@ 75VBridge 1 x 120W
@ 25VBridge 1 x 120W
@ 8Ω(Min) 1 x 120W		 SE:
@ 100V 2 x 140W
@ 25V 2 x 140W
@ 4Ω(Min) 2 x 140W
BTL:
@ 100VBridge 1 x 280W
@ 75VBridge 1 x 280W
@ 25VBridge 1 x 280W
@ 8Ω(Min) 1 x 280W
Audio Input Balanced: 2 x 3-Pin Phoenix Connectors
Unbalanced: 2 x RCA Jacks
Bluetooth: 1 x IPX1 External 2.4G Antenna(BT 5.3 Compatible)
Network: 1 x RJ45 Connector
SIP Audio Codecs G.722, G.711 A-law, G.711 U-law, Opus
SIP Audio Stream MP3 Sampling Rate 8–48KHz, Bit Rate 64–320kbps, Mono or Stereo
USB USB 2.0
Approvals FCC SDOC (Part 15B), CE (EN 55032: 2015+A11: 2020, EN 55035: 2017+A11: 2020, EN IEC 61000-3-2: 2019+A1: 2021, EN IEC 61000-3-3: 2013+A1: 2019+A2: 2021, ETSI EN 301 489-1 V2.2.3 (2019-11), ETSI EN 301 489-17 V3.3.1 (2024-09), ETSI EN 300 328 V2.2.2 (2019-07), EN IEC 62368-1: 2020+A11: 2020)
