ZYCOO

Network PoE Paging Gateway with SIP & ONVIF Support | ZYCOO

Download Datasheet
X10
The X10 SIP paging gateway is SIP enabled multifunctional IP audio device dedicated for industry users. It can convert voice streams from a SIP paging system or IP-PBX system to analog sounds for background music, public address, intercom, etc. Based on the compact hardware design, open standard SIP protocol support, rich functionality and high performance. Industry users can customize the X10 SIP paging gateway into any desired form of intercom devices or paging speakers, so the X10 can be widely used for smart and safe scenarios, to increase the efficiency of communication and information sharing.

Built-in Amplifier

Two-way Intercom

Microphone Input

HD Audio Codecs

Standard SIP Integration

PoE Support

Peripheral Devices

ONVIF

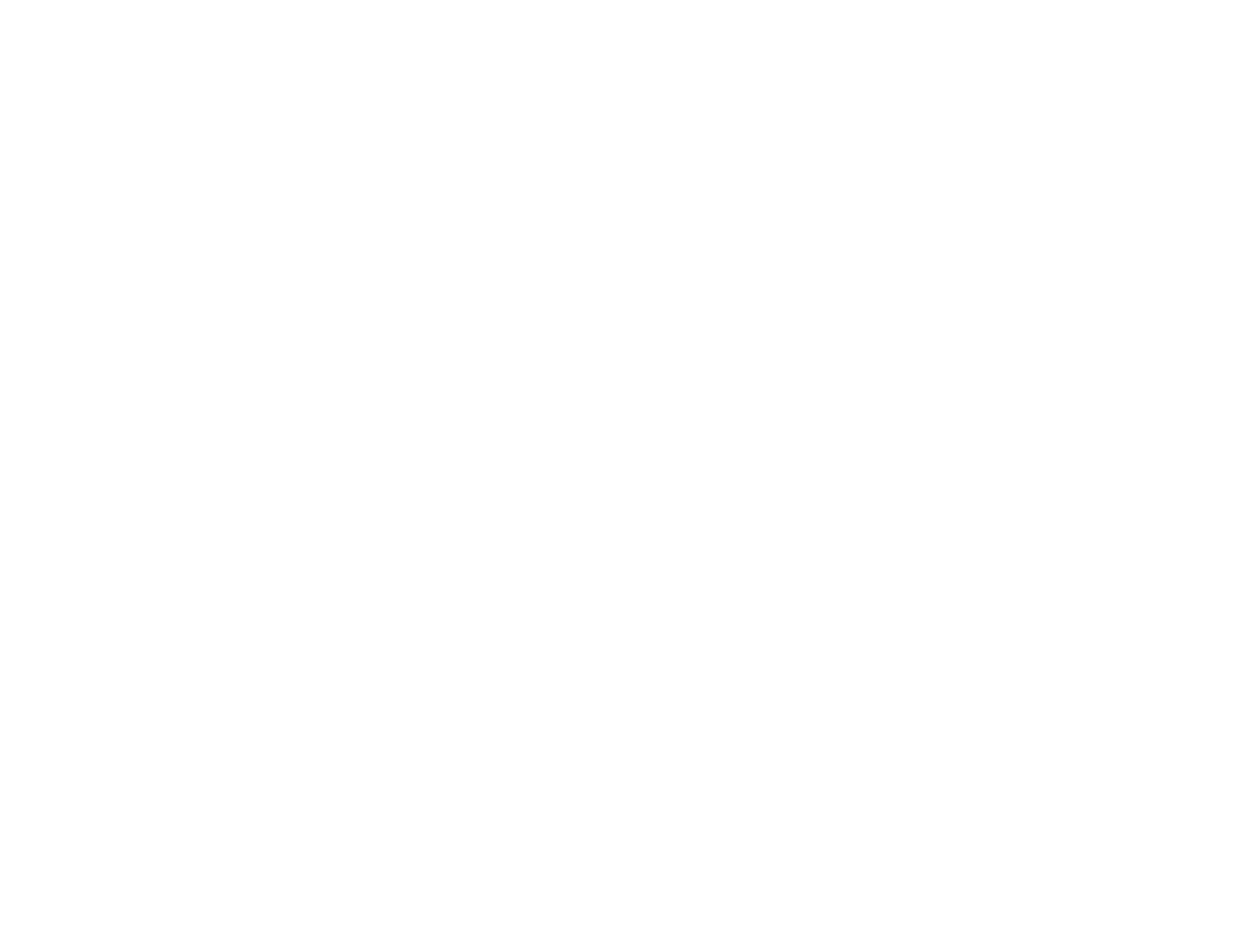

Front and Back Panel of X10

Provide richer functional combinations.

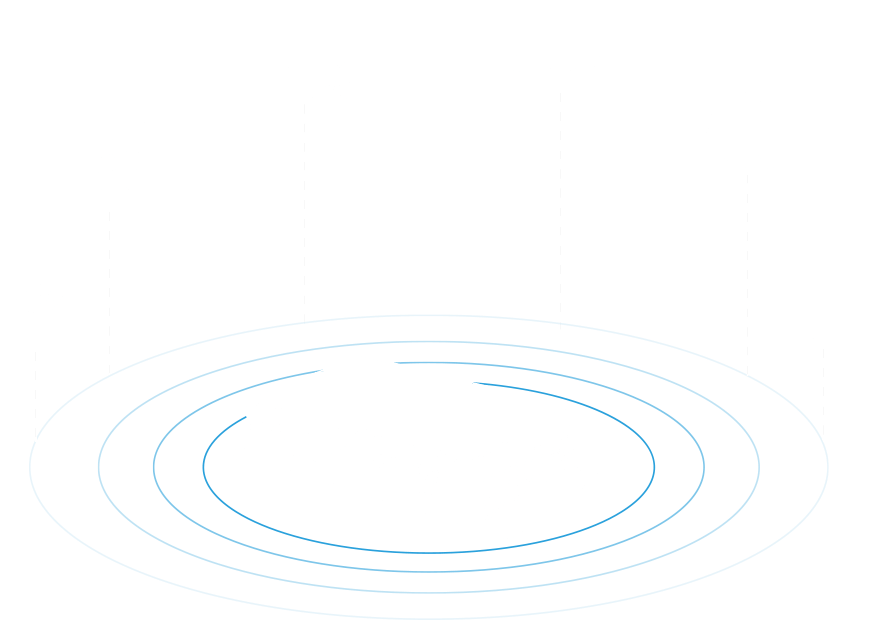

Peripheral Integration

Specifications

X10
Headset Output 3.5mm Jack
Microphone 3.5mm Jack
Volume Control VOL+ and VOL-, press both to announce IP address
Power Input DC 12V-3A Jack
Ethernet ETH0+ETH1, 10/100Mbps, ETH0 with PoE IEEE 802.3at enabled
Dry Contact NO/NC contacts, max AC 125V-1A, DC 60V-1A
Audio Codecs G.722, G.711 A-law, G.711 U-law, Opus
Music Streaming MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo
Approvals EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
