Education
Creating Safer Learning Environments with Smart Innovations
IP Speakers for Ceiling & Wall-Mounted Use | Dante Option
Unleash Superior Sound with ZYCOO Network Commercial Speaker
Auto Provisioning
SIP
Built-in Amplifier
Dual-speaker
Driver
Driver
PoE (802.3at)
HD Voice
ONVIF
Network Ceiling Speaker: Seamless Sound from Above
Introducing the SC10 and SC15 Network Ceiling Speakers — IP speakers engineered with a coaxial design for crystal-clear audio and discreet integration. Perfect for commercial spaces, these SIP speakers deliver impeccable sound quality without compromising aesthetics.
Network Cabinet Speaker: Powerful, Precise, Perfect
Experience the SW15 Network Cabinet Speaker, a wall-mounted IP speaker where robust power meets pristine audio quality. Designed for spaces demanding potent sound output and clarity, the SW15 ensures your audio is heard, felt, and appreciated.

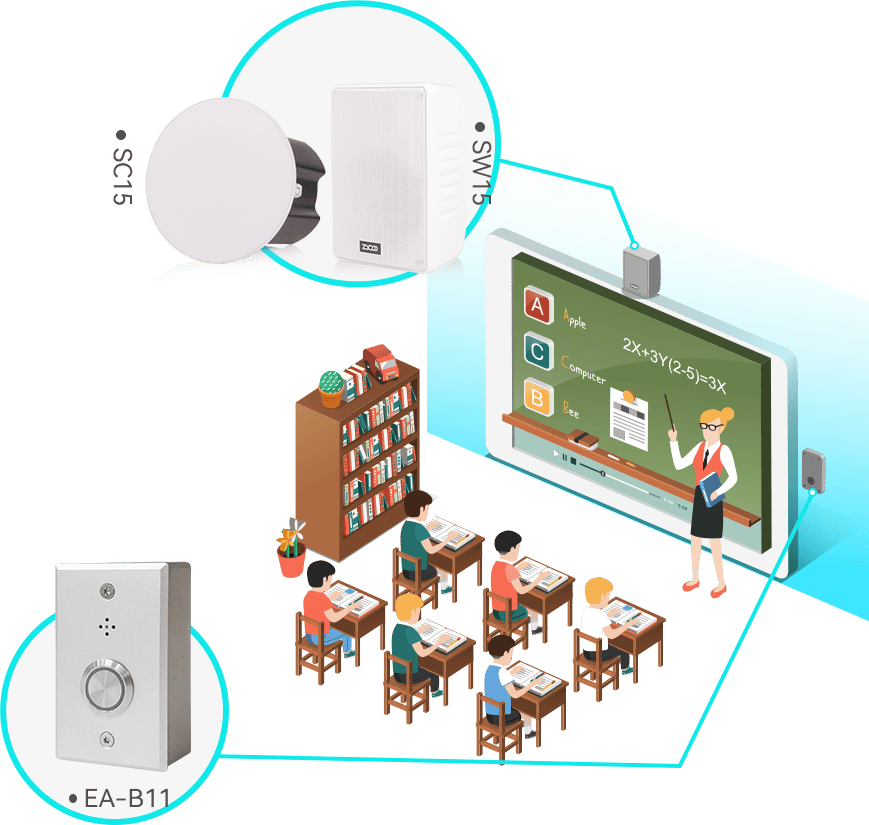

Two-Way Communication with the EA-B11 Call Button
The ZYCOO EA-B11 Call Button with Microphone pairs with the SC15 and SW15 IP speakers to add two-way calling on top of one-way paging. Press the illuminated button to dial a preconfigured destination and speak directly through the connected speaker—the LED flashes on incoming calls, and pressing it again answers.
Dante®-Enabled Commercial Speaker Option
Seamlessly Integrate ZYCOO Hardware into Your Dante Ecosystem
To meet the growing demand for Dante speaker architectures in commercial and professional AV environments, ZYCOO offers an optional Dante® software variant that turns the SC15 and SW15 into dedicated Dante speakers for direct integration into existing Dante networks.
- Removes the SIP and multicast features.
- Focuses on Dante audio processing capabilities and essential system functions like network configuration.
- Streamlines the software architecture, connecting Dante speaker units to the network as standard Dante terminal devices.
- Available for plug-and-play audio access, transmission and management.
Specification
| SC10 | SC15 | SW15 | |
|---|---|---|---|
| Speaker Component | 4in woofer + 1in tweeter | 5.25in woofer + 1in tweeter | |
| Amplifier | Built-in Class D Amplifier | ||
| Rated Power | 8Ω 10W | 8Ω 15W | |
| Sensitivity | 90dB/1m/1W | 85dB/1m/1W | |
| SPL | 100dB | ||
| Frequency Range | 70Hz - 20KHz | ||
| Coverage Pattern | 90°H 90°V 30m2 | 90°H 50°V 30m2 | |
| Acoustics | Mono | ||
| Weight | 1.4kg | 3.45kg | 3.29kg |
| Approvals | EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN IEC 62368-1:2020+A11:2020, FCC Part 15B Class B | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A |
