ZYCOO

VC-Z01
Network Volume Controller

Smart and Fast Volume Control for Zones
Download Datasheet
PB-S11

The ZYCOO VC-Z01 Network Volume Controller is a compact network audio control device that allows real-time volume adjustment of ZYCOO speakers within a room or a zone via multicast. It features an automatic lock function to prevent unauthorized operation, ensuring secure usage.

Moreover, VC-Z01 supports scheduled volume control, enabling automatic volume adjustments based on Event Scheduler—ideal for scenarios requiring different volume levels at different times of the day.

It is powered via a PoE network cable and features flexible installation options, supporting both wall-mount installation (with EA-MB1 mounting box) and flush-mount installation (compatible with standard 1-Gang electrical boxes). VC-Z01 is ideal for use in classrooms, meeting rooms, offices, hotel rooms, and other indoor environments.

Precision Volume Adjustment

Zone Volume Control

One-Touch Mute

Automatic Lock

PoE Supported

Scheduled Mute/Unmute

Scheduled Volume Adjustment

Scheduled Fixed Volume Setting

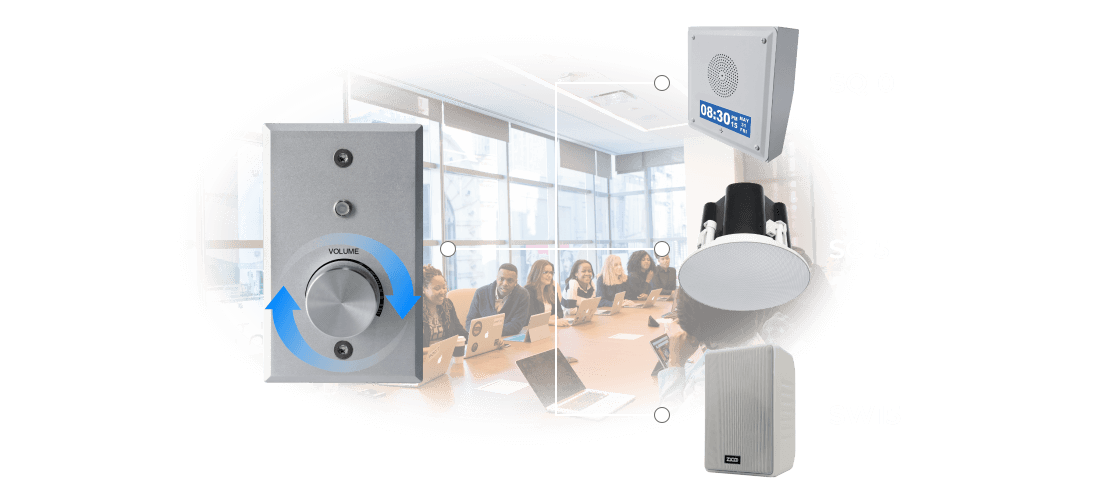

Zone Volume Control

VC-Z01 allows volume control of all ZYCOO speakers within the same multicast address. Whether managing a single room or an entire zone, users can easily perform synchronized volume adjustments to multiple devices, ensuring consistent and efficient audio control throughout designated areas.
Zone Volume Control

Compatible with All Audio Services

No matter how your system operates—whether it’s SIP paging, music playback, emergency alarm, daily announcement, ONVIF audio streams, or other audio services—VC-Z01 ensures that volume control remains precise and responsive. It provides dependable performance across all audio applications, ensuring smooth and consistent system operation.
Compatible with All Audio Services

One-Touch Mute

With a single press of the knob, all controlled speakers can be instantly muted—ideal for commercial scenarios. Press again or rotate the knob to resume normal volume levels. This intuitive feature offers fast, user-friendly control in dynamic environments.
One-Touch Mute

Event Scheduler

VC-Z01 supports advanced scheduling for smart volume control. Set custom time plans to automatically adjust speaker volume, fix it at a preset level, or trigger mute/unmute actions. Perfect for environments — like schools, offices, or hospitals—where audio levels change throughout the day.
Event Scheduler

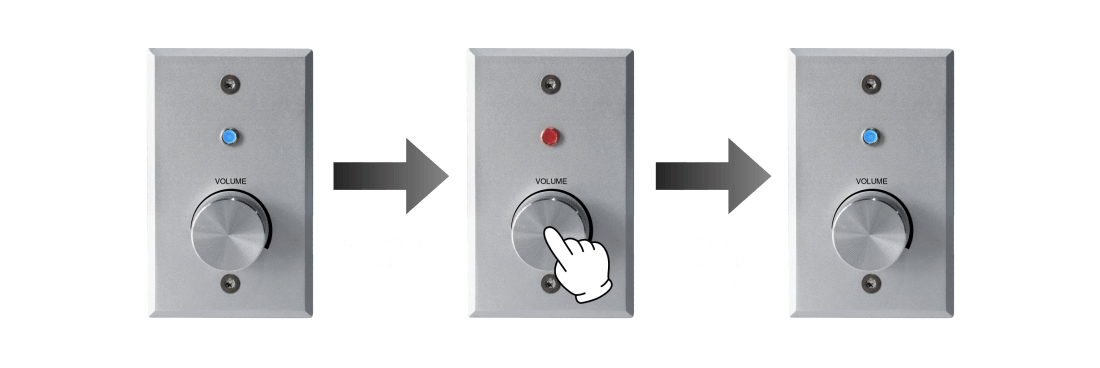

Automatic Lock for Security

To prevent unauthorized access or accidental volume changes, VC-Z01 includes a customizable auto lock feature. After a preset idle period, the device locks automatically. Users must long-press the knob to regain control, making it ideal for shared or public-facing installations that demand secure operation.
Automatic Lock for Security
Specifications
VC-Z01
Power Input PoE (IEEE 802.3af/at)
Ethernet 10/100Mbps Adaptive
Dry Contact Output Connectors (Reserved) 1 x 2-Pin Phoenix Connector
Dimension 4.49" x 2.76" x 1.57" (114mm x 70mm x 40mm)
Weight 210g
