VI Series
Network Intercom

Vandal-proof IP intercom — durable, secure, and easy to deploy
Download Datasheet

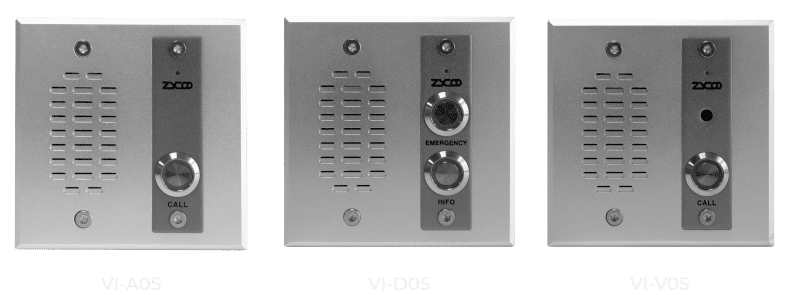

VI Series Network Intercom

The ZYCOO VI Series Network Intercoms are rugged, vandal-proof IP intercoms (audio, video, dual-button) with PoE support. Compatible with 2-Gang boxes, they offer wall or flush mounting. Features include two-way calls, remote access control, HD video (VI-V05), dual call buttons (VI-D05), and tamper alarm for security.

Standard SlP Supported

PoE Supported

ONVIF Compatible

Two-Way Communication

Vandal-Proof

Tamper Alarm

Remote Access Control

Failover Forwarding

Wall-Mount and Flush-Mount Installation

The VI Series intercom supports PoE and offers flexible installation options, supporting both wall-mount installation (with EA-MB2 mounting box) and flush-mount installation (compatible with standard 2-Gang electrical boxes).

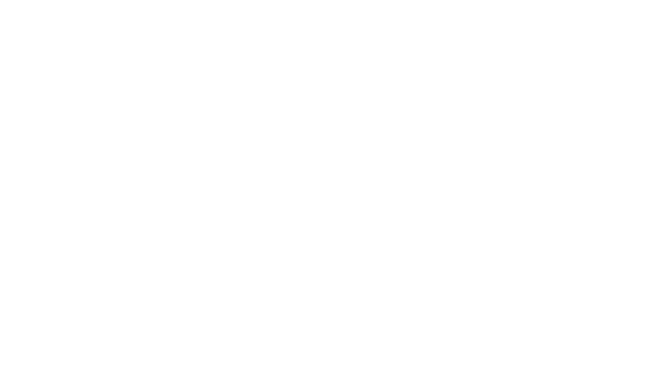

Surface Mounted

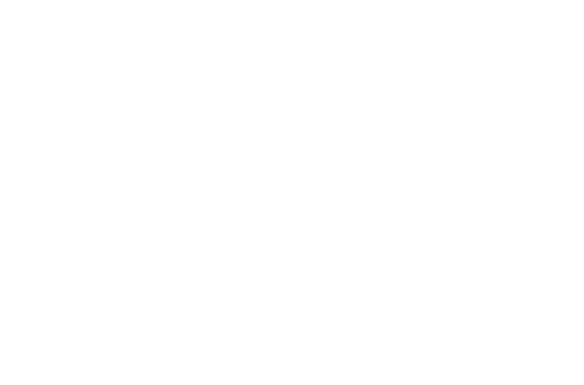

Flush Mounted

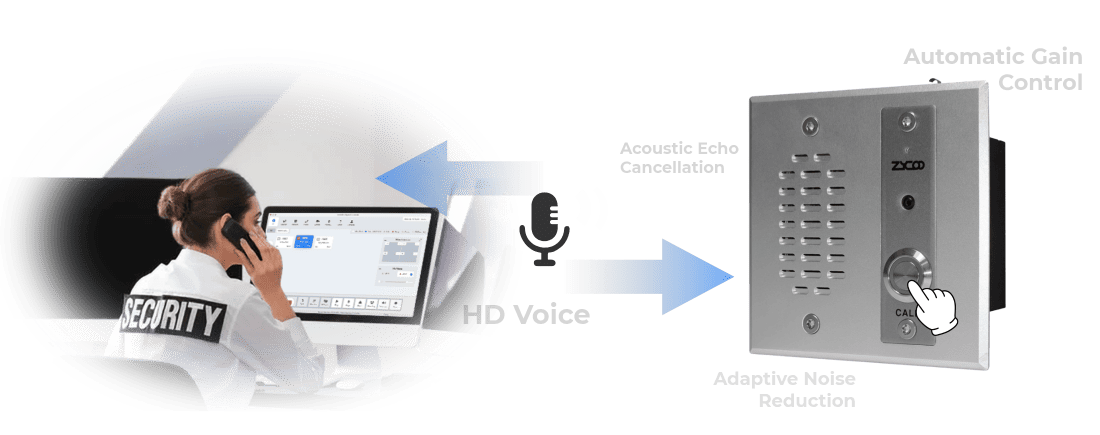

Two-Way Intercom Communication

Ideal for access control and emergencies, the VI Series enables clear two-way voice communication. With a single button press, visitors reach operators, who can grant access remotely. Built-in Acoustic Echo Cancellation, Adaptive Noise Reduction, and Automatic Gain Control algorithms ensure clear, reliable audio under various conditions.
Two-Way Intercom Communication

Vandal-Proof Design

Designed for harsh environments, the VI Series features a vandal-resistant front panel that resists impacts and tampering, ensuring long-term durability and operational security in public and high-risk locations.
Vandal-Proof Design

Tamper Alarm

The VI Series intercom is equipped with a built-in tamper detection feature that identifies unauthorized removal or forceful disassembly. When tampering is detected, the device instantly triggers an audible alert or notifies the security room to enable timely intervention, enhancing site safety and device integrity.
Tamper Alarm

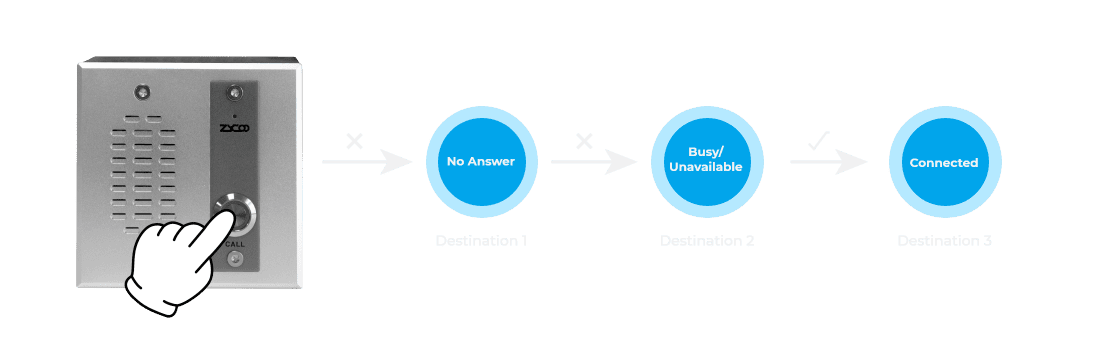

Failover Forwarding

Users can predefine up to 5 call destinations. When the line is busy, not answered, or the device is offline, calls can be automatically forwarded to the next destination, ensuring calls are not missed during emergencies and always reach someone in time.
Failover Forwarding

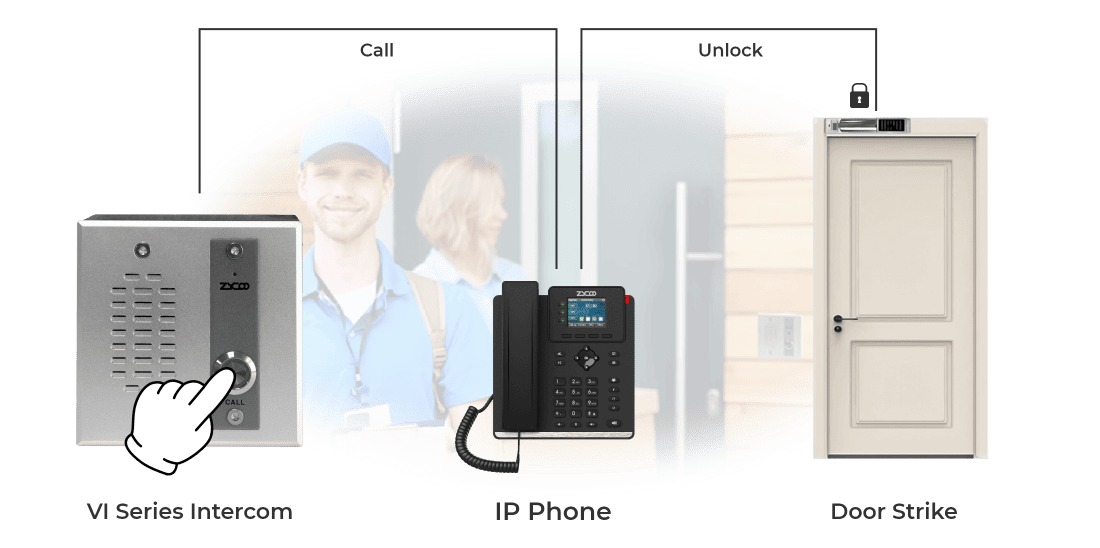

Remote Access Control

Authorized personnel can remotely control door strike using DTMF signaling during a call session. This enables security teams to verify identities and grant access in real time—for example, allowing entry to visitors, staff, or delivery personnel at facility entrances without on-site interaction.
Remote Access Control
Specifications
VI-A05 VI-D05 VI-V05
Power Input PoE (IEEE 802.3af/at)
Rated Power 4Ω 5W
Speaker Sensitivity 96dB ± 3/1m/1W
THD (@1kHz) <1%
SNR (20kHz BW) 97dB
Frequency Response 100Hz - 20KHz
Microphone Sensitivity -36 ± 3dB
Video Resolution / 1280*720@25fps
Mounting Flush-mounted or Wall-mounted Installation
Dimension 4.49" x 4.49" x 1.57" (114mm x 114mm x 40mm)
Weight 284g 296g 294g
